Creating a request

Start in the Share sheet

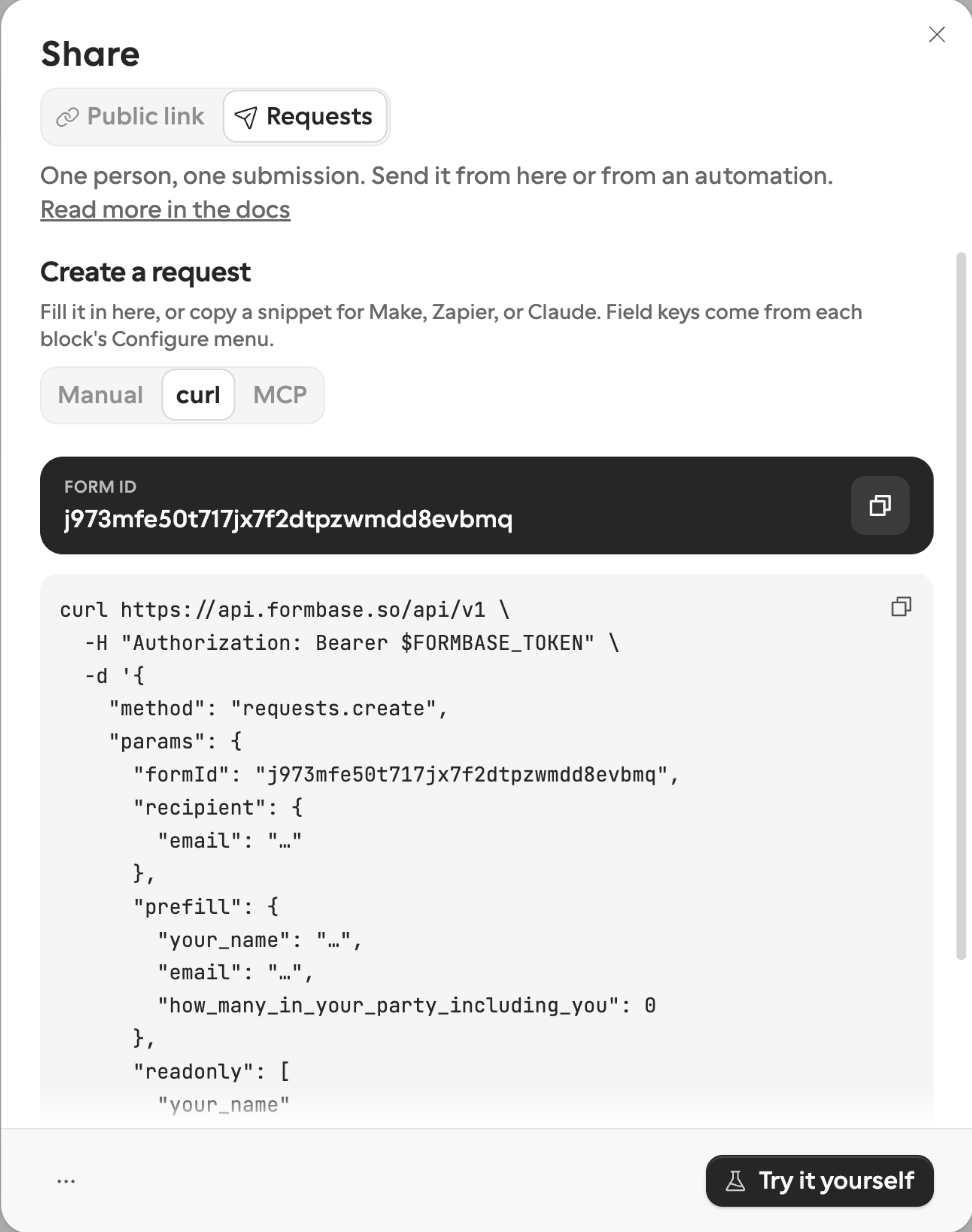

Open your published form, click Share, and pick the Requests tab. The card there gives you everything you need to make the first call:

• The form id, with a copy button.

• A curl snippet and an MCP prompt, both built from your form’s real field keys — so the example is already addressed to the fields this form actually has.

• A Manual tab that creates one request by hand, and Try it yourself, which turns what you filled in there into a request in test mode and hands you its link.

• A link through to the Requests page, filtered to this form.

Step 1 — Discover the fields

fields.list returns every field of the form’s current published version, with the key to address it by, the value shape it takes, and which bucket it belongs in.

curl -X POST https://api.formbase.so/api/v1 \
  -H "Authorization: Bearer $FORMBASE_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"method":"fields.list","params":{"formId":"j57..."}}'

{
  "ok": true,
  "data": {
    "published": true,
    "items": [
      { "key": "company_name", "type": "text", "title": "Company", "required": true, "prefillable": true },
      {
        "key": "company_size", "type": "select", "title": "Company size", "required": false, "prefillable": true,
        "options": [
          { "key": "1_50", "label": "1–50" },
          { "key": "51_200", "label": "51–200" }
        ]
      },
      { "key": "case_id", "type": "hidden", "title": "Case", "required": false, "prefillable": false, "context": true },
      { "key": "total", "type": "number", "title": "Total", "required": false, "prefillable": false, "calculated": true },
      { "key": "signature", "type": "signature", "title": "Sign here", "required": true, "prefillable": false }
    ],
    "hasMore": false
  }
}

• context: true marks a hidden field. Its value goes in context, never in prefill; a hidden field’s key in prefill is rejected with UNKNOWN_FIELD_KEY.

• calculated: true marks a calculated field. The form works out its value, so nothing can send one; you read it back under its key in answers.

• prefillable: false marks a field nobody can supply a value for: file upload, signature, payment, appointment booking, and Documents blocks. The recipient fills in the questions themselves. Hidden fields and calculated fields also show prefillable: false: hidden fields take context, and calculated fields take nothing.

• options lists the choices for a choice question. Send the option’s key, not its label; the label is there so you can match the choice you know to its key. A matrix lists its rows and columns the same way.

• Repeating groups come back as one entry with type: “group”, repeating: true, and a list of members.

Step 2 — Create the request

curl -X POST https://api.formbase.so/api/v1 \
  -H "Authorization: Bearer $FORMBASE_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"method":"requests.create","params":{
        "formId":"j57...",
        "recipient":{"email":"ada@acme.com","name":"Ada"},
        "context":{"case_id":"CASE-9"},
        "prefill":{"company_name":"Acme","company_size":"51_200"},
        "readonly":["company_name"],
        "delivery":"email",
        "externalId":"run-42",
        "callbackUrl":"https://automation.example/webhook/resume-abc",
        "idempotencyKey":"run-42"}}'

{
  "ok": true,
  "data": {
    "id": "kd7...",
    "status": "pending",
    "url": "https://form.formbase.so/r/rq_...",
    "deliveryStatus": "queued",
    "expiresAt": 1794787200000,
    "createdAt": 1789379200000,
    "externalId": "run-42",
    "deduplicated": false
  }
}

deliveryStatus is “queued” when formbase emails the invitation and “not_requested” when you deliver the link yourself.

Prefill, locked fields, and context

Three different things can be attached to a request, and mixing them up is the most common first mistake.

Prefill

Initial answers for the visible questions, so the recipient reviews and corrects instead of typing from scratch. Everything you already know about them belongs here — the company name from your CRM, the amount from the invoice, last year’s answers.

Locked fields

List a prefilled key in readonly and the recipient sees the value but cannot change it. Use it for the facts they are confirming rather than supplying — the contract number, the agreed price. Locking is per request: the form itself is untouched, and the same field is freely editable on the next request.

Every locked key must also be prefilled, and a locked required field must be prefilled with something non-empty — otherwise the recipient would face a form they could never submit, and formbase rejects the call instead of creating that trap.

Context

Trusted values for the form’s hidden fields — a case number, a workflow run id, an amount. Context feeds variables, conditional logic, calculated fields, and email copy, comes back unchanged in the callback, and the recipient cannot alter it. That last part is the difference from seeding a hidden field through a URL on a public link, where anyone can edit the query string; request links ignore URL query parameters entirely. Context values must be a string, number, or boolean.

Context is not free-form: every key must be a hidden field on the form’s published version, and any other key is rejected with UNKNOWN_FIELD_KEY. Bookkeeping that has no hidden field, like an execution id, belongs in metadata.

Hidden fields are not shown on the form, but a context value is not secret from the recipient. They see it wherever the form or the invitation shows it: a mention in the form content or email copy, or a visible question that uses that hidden field as its default value. In that last case the recipient sees the context value pre-filled in that question and can edit the answer. The context value itself stays unchanged. A prefill for that question’s own key wins over the default.

Metadata

Your own bookkeeping — an execution id, a CRM record id. It never reaches the form at all, so it cannot be piped into copy or read by logic; it just rides along and comes back in every callback and status read.

Value shapes

Send values in the shape the type from fields.list asks for. A wrong shape comes back as a validation error naming the key, the expected type, and — for choice questions — the values that would have been accepted.

Documents

A Documents block hands files to the respondent. Its authored files are the same for everyone and always stay; a request adds files for its one recipient below them — the customer’s own lease contract, an ID copy to check. Bytes never travel through the API call itself: upload first, then reference.

1. 1

   Reserve the upload

   Call documents.create with formId, name (1–200 characters), contentType (PDF or image), the exact size in bytes, and optionally a sha256 of the file (64 hex characters). You get back an id and an uploadUrl that is valid for one hour.

2. 2

   Upload the bytes

   PUT the file to uploadUrl with the same Content-Type. Nothing is verified yet.

3. 3

   Reference it on the request

   Pass documents: [{ documentId, name? }] on requests.create. formbase checks the uploaded object (size, file signature, sha256 if you sent one) before the request is created, and the recipient sees the file in the block.

"documents": [
  { "documentId": "kn7...", "name": "Your lease contract" },
  { "documentId": "kn8..." }
]

name overrides the display name stored on the upload. When the form has more than one Documents block, name the target with field, the block’s field key (fields.list lists it, together with the authored documents every respondent already gets). The files land below those authored documents — a request adds files, it never replaces one. One upload can be referenced by as many requests as you like — a price list uploaded once serves five hundred requests.

Limits: PDF and images only, 25 MB per document, 100 MB per request (DOCUMENTS_TOO_LARGE), and at most 20 documents per block counting the authored ones (DOCUMENTS_TOO_MANY). The files count against your workspace storage and are freed once the requests referencing them fall out of the form’s retention window. The submission records the list the recipient saw under the block’s field key, so the callback tells you exactly which files this person was given.

The rest of the options

Test mode

Pass test: true to exercise the whole shape before a real run. A test request is real in every way that matters for wiring: the link opens and can be completed, the callback fires as usual, and requests.get returns the answers. What it never does is reach anyone or anything you would have to clean up afterwards:

• No invitation and no reminder is sent, whatever delivery says. Send reminder is refused on it, and it spends none of your monthly allowance.

• The callback carries “test”: true, so your workflow can branch or ignore it.

• The submission is stored but does not count: not against your monthly quota (a test completes even when the quota is used up), and it never appears in the form’s submission counts, the submissions tab, exports, or your integrations. Nobody is notified.

• The request is hidden from the Requests page behind Show test requests, left out of the request funnel in Analytics, and left out of requests.list unless you pass includeTest: true.

• The link closes within 24 hours, even when expiresAt asks for longer; the expiresAt in the response says when. On Free, a workspace may create 10 test requests a day. The next one fails with RATE_LIMITED and reason TEST_REQUEST_LIMIT_REACHED, and retryAfterMs says when you can try again. Pro and Business have no daily cap.

Try it yourself on the Share sheet is this mode with a single click: it takes the Manual tab’s draft — prefill, locks, context, callback, expiry — addresses the request to your own account, sends no email, and hands you the link to open yourself.

What a request costs

Every plan has one monthly allowance shared by both channels: a share-link submission spends one unit, and so does every request you create — whether the recipient answers, ignores it, or you cancel it. The submission a request collects is already paid for and counts nowhere. Free includes 1,000 units a month, Pro and Business 50,000; the count resets on the 1st of each month, UTC. At the cap, requests.create fails with UPGRADE_REQUIRED and reason MONTHLY_ALLOWANCE_REACHED; requests you already created stay answerable.

On Free, a request created with “delivery”: “email” also spends one of the account’s 10 free invitations. They never reset; once they are gone, email delivery fails with UPGRADE_REQUIRED and reason FREE_INVITATIONS_USED.

Idempotency

Pass the same idempotencyKey with the same body and you get the original request back, with deduplicated: true and the original link — no second request, no second email. Reuse the key with a different body and formbase refuses with IDEMPOTENCY_CONFLICT rather than guessing which one you meant. Keys are scoped to the workspace and honoured for 30 days; after that the same key starts a new request.

In a workflow tool, the execution id is the natural key: a run that is retried after a network blip picks up the request it already created.

Rate limit

requests.create and documents.create share a budget of 60 calls a minute, counted per API token (or per user, for a call made without one). A backlog you are draining should pace itself; a burst over the budget is refused and can be retried.

Custom domains

If the form is already published on one of your custom domains, request links are minted there automatically — https://forms.yourcompany.com/r/rq_…. Name domainId explicitly when the form is published on more than one. The domain must belong to the same workspace as the form.

What the recipient sees

Exactly the form you authored — same theme, same logo, same language — with their values in place, locked fields read-only, and no captcha to solve. When they submit, they get your thank-you page. If they come back to the link afterwards, they get the outcome page instead of a blank form.

There is no message from your automation on the page. Anything the recipient needs to be told belongs in the form itself, where you can personalise it by mentioning a context value or a prefilled field.

An AI agent runs the same two steps as fields_list and request_create, with the same options — documents and domainId included. See Requests on the MCP server.
